Feature：
- Control operation: AUTOMATIC/MANUAL by touch panel.
- Provides many groups of coating parameters; customer can depend on the different product to establish process during the coating.
- Rotational speed and coating voltage control by MANUAL/ AUTOMATIC, user friendly.
- Crystal monitor with controller and single sensor to running accurate coating.
Application:
Suitable for Various decorative item:
Alloy tyre ring, auto light, cosmetic containers, perfume bottles, mirror backs, and plastic, glass and iron products.
|
System/Model
|

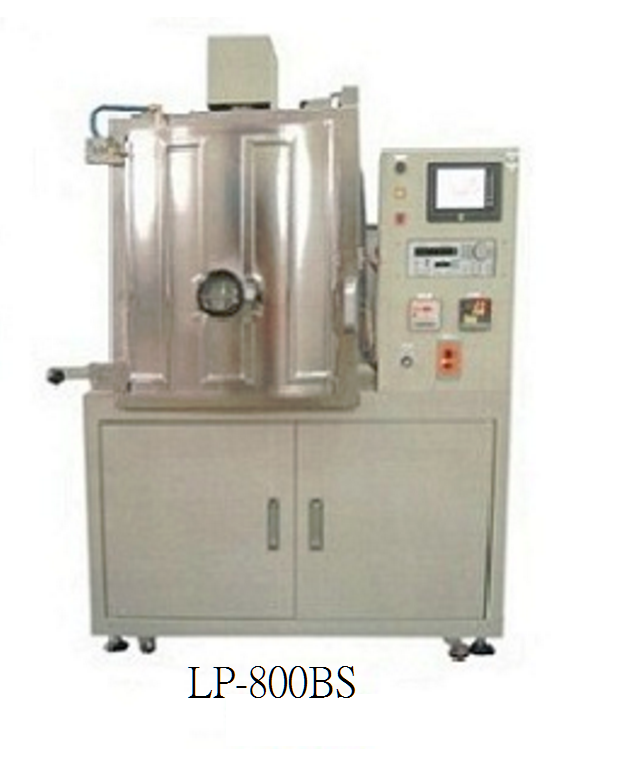

LP-800 BS
|
|
Chamber Size
|
Diameter
|
800mm
|
|
Height
|
800mm~1000 mm
|
|
View Window
|
Set
|
1
|
|
Main Performance
|
Ultimate Pressure
|
Less than 10-6 Torr
|
|
Operation Pressure
|
From 1 atm to 3x10-4 Torr within 10 minutes (unloading)
|
|
Pumping System
|
Rotary Pump
|
3000 L/min
|
|
Booster Pump
|
600m3/hr
|
|
Diffusion Pump
|
22”
|
|
High Vacuum Valve
|
|
22 inch
|
|
Roughing Valve
|
|
3 inch
|
|
Foreline Valve
|
|
3 inch
|
|
Leak Valve
|
|
1 inch
|
|
System Operation
|
|
Automatic/ Manual
|
|
Evaporation Power Supply
|
|
6~10KW
|
|
Vacuum Gauge
|
|
Full Rang Gauge (760~10-7 Torr)
|
|
Control Box
|
Set
|
1
|
|
Cooling water flow rate
|
|
80 L/ min
|
|
Cooling Tower
|
|
3~5 RT (Water Pressure: 4kg/ cm2; Pressure Drop: 2kg/ cm2)
|
|
Cooling Water
|
|
Inlet: 18℃; Outlet: 25℃; Standard: 20±1℃
|
|
Air Compressor
|
|
1HP~3HP (Air Pressure: 5 ~ 8 kg/ cm2)
|
|
Total Power Requirement
|
|
30KW
|
