System/Model
|

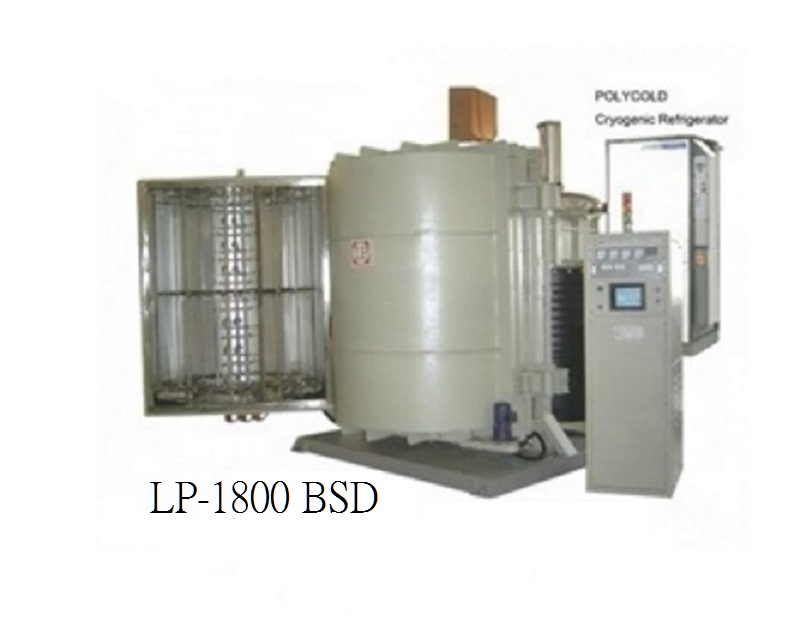

LP-1800 BSD
|
|
Chamber Size
|
Diameter
|
1800 mm
|
|
Height
|
1600 mm~2200 mm
|
|
Capacity
|
-
|
∮400x1,700 mm x8 / ∮540x1,700 mm x6
|
|
Main Performance
|
Ultimate Pressure
|
Better than 10-6 Torr
|
|
Operation Pressure
|
From 1 atm to 5x10-5 Torr within 10 minutes (unloading)
|
|
View Windows
|
Set
|
1
|
|
Number of Filaments
|
Pcs
|
20~26
|
|
Pumping System
|
Rotary Pump
|
15,000 L/min
|
|
Booster Pump
|
4,000~6,000 M3/ hour
|
|
Diffusion Pump
|
45,000 L/ sec x2
|
|
Holding Pump
|
300~600 L/min (Optional)
|
|
Vacuum Gauge
|
|
Pirani (760 ~10-3 Torr); Cold Cathode (10-3 ~ 10-6 Torr)
|
|
Control Box
|
Set
|
1
|
|
High Vacuum Valve
|
|
36 inch
|
|
Roughing Valve
|
|
10 inch
|
|
Foreline Valve
|
|
6 inch
|
|
Leak Valve
|
|
2 inch
|
|
Holding Valve (option)
|
|
1 inch
|
|
Evaporation Power Supply
|
|
75KW
|
|
System Operation
|
|
Automatic/ Manual
|
|
Cooling water flow rate
|
|
150 L/min
|
|
Cooling Tower
|
|
15 RT (Water Pressure: 4kg/ cm2; Pressure Drop: 2kg/ cm2)
|
|
Cooling Water
|
|
Inlet: 18℃; Outlet: 25℃; Standard: 20±1℃
|
|
Polycold
|
|
Option
|
|
PF Generator
|
|
Option
|
|
Air Compressor
|
|
3HP (Air Pressure: 8 kg/ cm2)up
|
|
Electrical Control System
|
|
PLC
|
|
Total Power Requirement
|
|
105KW
|
